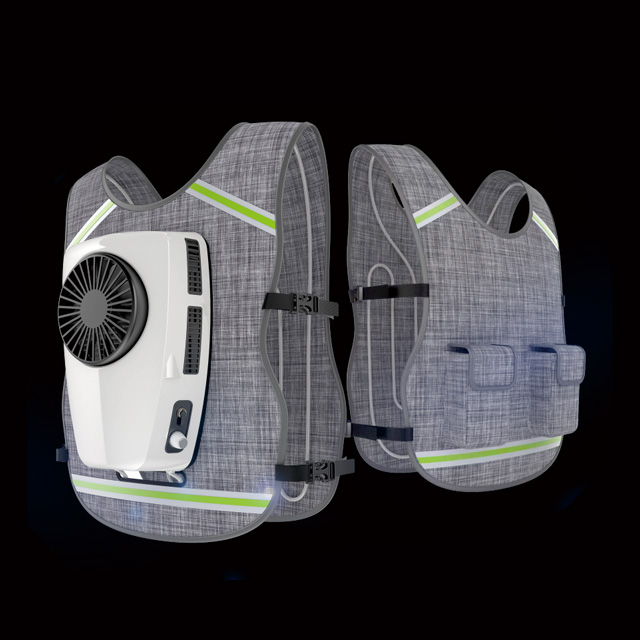

Product Name: Direct Cooling Backpack Air Conditioner
Model: BBKT-020JX
Working Condition
It's designed for indoor and outdoor cooling application and the working environment temperature is 28℃~55℃.
Technical Parameters
1. Rated Voltage: 24V
2. Cooling or Heating Function: cooling function only
3. Rated Power: 60W
4. Rated cooling capacity: 200W
5. Refrigerant: mixing working medium
6. Weight: cooling host 2KG; vest 0.6KG; Battery pack: 0.9KG
7. Compressor Type: high-efficiency inverter compressor
Technical Requirments
1. Noise (db(A)): that’s 35db to 45db from low speed to high speed BBKT-020JX2
2. It is required to start up the cooling speed quickly and the cooling capacity is evenly distributed, also the temperature should not be too low to cause frostbite to the skin.

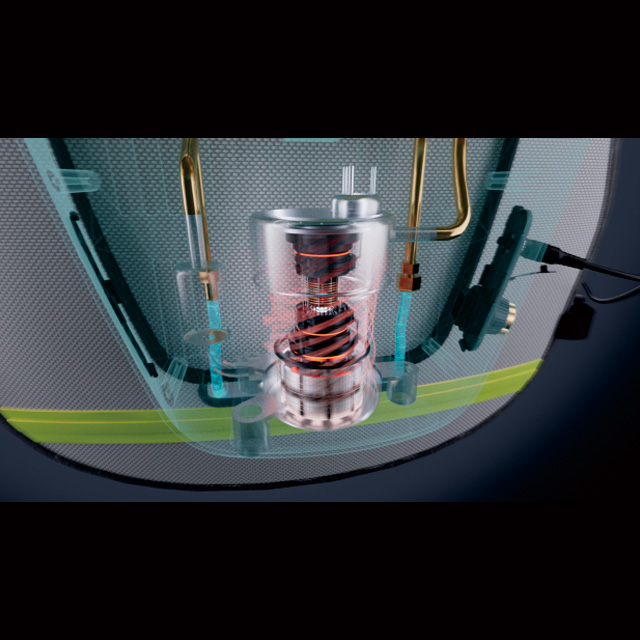

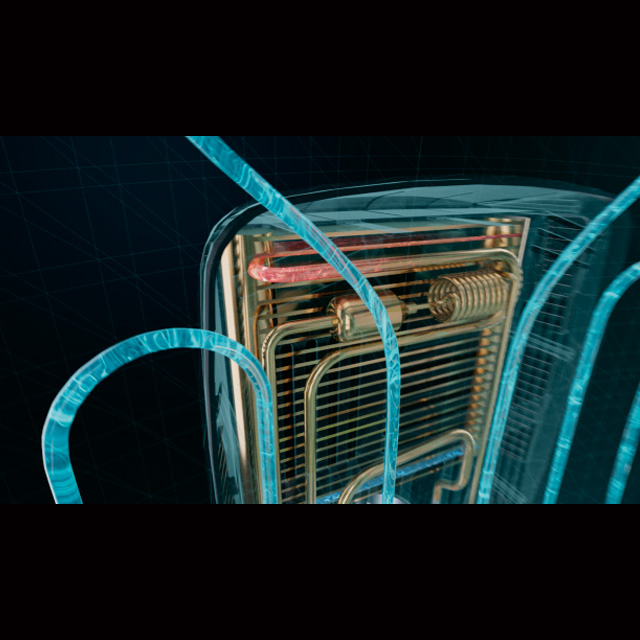

This product adopts micro-compressor refrigeration, and the combination of micro-refrigeration unit and clothing to realize the effect of portable single-person cooling. It makes use of a hose-type evaporator which is evenly distributed in the clothing. The refrigerant evaporates directly in the hose to achieve the cooling response speed in fast, high thermal efficiency way. Also, non-toxic, environmentally friendly and non-flammable refrigerants are used to ensure safe use.

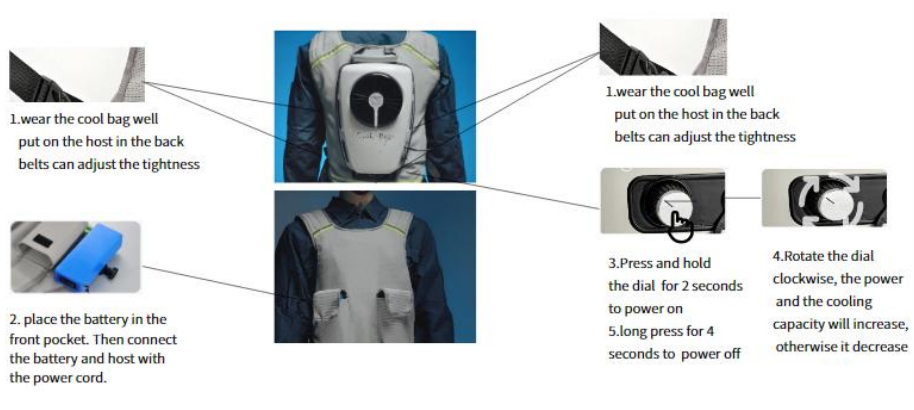

Instructions
1. Wear the cool bag well and adjust the tightness (the cooling can be better conducted if you adjust the belts a litter tighter).

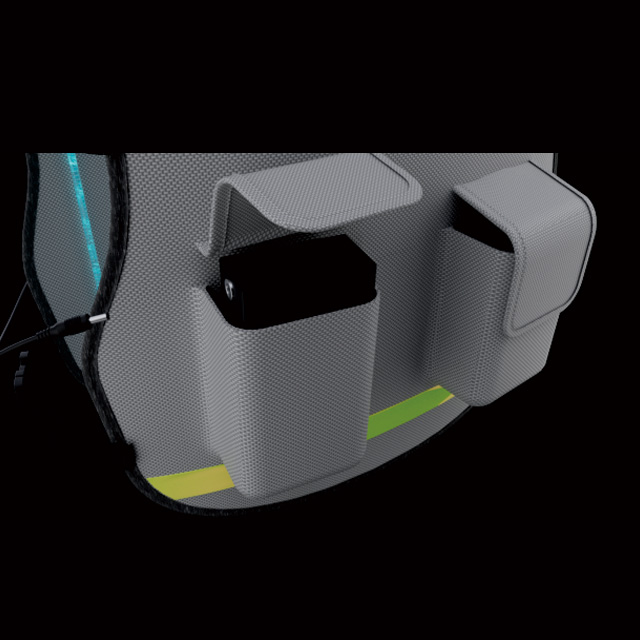

2. Place the battery in the front pocket. Then connect the battery and host with the power cord.

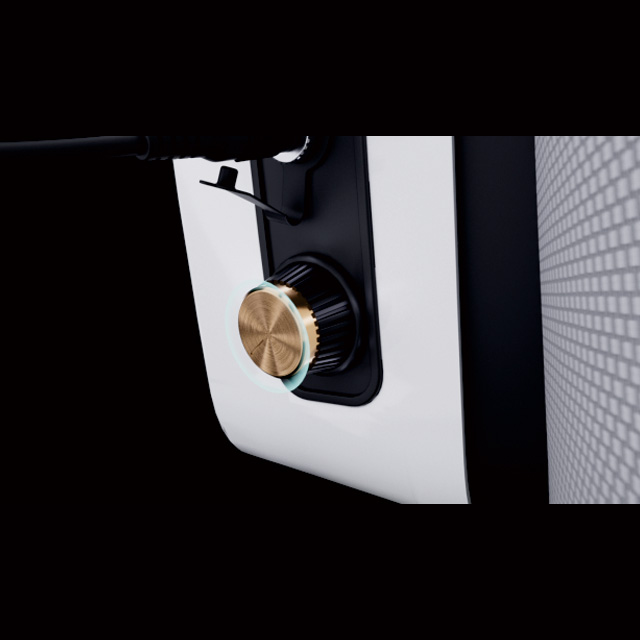

3. Press and hold the dial for 2 seconds to power on, long press for 4 seconds to power off
4. Rotate the dial clockwise, the power and the cooling capacity will increase, otherwise it decrease (the effective turn is one circle)
5. The system enters a stable state within 3 minutes after starting up, and the cooling capacity can be evenly distributed
6. When the battery is charging, the indicator light is green that means it is fully charged.
7. In special scenes where the moving distance is not large, the DC plug of the charger can be directly connected to the backpack unit to achieve long-term use.
Example
After sales and Maintenance
1. If the product is not cooling, check whether the fan is working normally. If not, please check whether the battery is fully charged (according to the battery indicator light). If the power display is sufficient but there is no cooling, please contact the after-sales service
2. Please use the original battery and charger. If the machine is damaged by using a battery or charger other than the original one, the manufacturer will not guarantee the quality.
3. Non-professionals do not disassemble the machine
Packing and Accessories
1. The product is individually packaged: the outer packaging size is 61*48*13 (cm); gross weight: 5.6kg; outer packaging material: kraft corrugated paper; lining material: EPE foam
2. Components List:
| Description | Quantity |
| Host | *1 |
| Battery | *1 |
| Charger | *1 |
| Power Cord | *1 |
| User Manual | *1 |
Cautious
1. Please use the product at an ambient temperature of 30-55 degree. If the temperature is too high, it may cause the poor cooling effect
2. Be sure to use the original battery for the power supply, otherwise it may cause damage to the backpack air conditioner.
3. During the use of the backpack air conditioner, try to keep away from the heat source and dusty environment to keep the ventilation smooth, otherwise it may cause poor cooling effect.
4. If the backpack air conditioner cannot be turned on, please check whether the battery is charged and whether the wiring is connected properly. If the problem cannot be solved, please contact the after-sales service.
5. If the cooling effect of the backpack air conditioner is not good. Please confirm the ambient temperature and whether the vest is close to the body. It is recommended to wear polyester 4 short sleeves with better thermal conductivity. If the problem cannot be solved, please contact the after-sales service.
6. If the machine does not run after turning on, please check the battery capacity
7. If the machine is running but not cooling, please check whether the refrigerant is leaking
