Features
High efficiency MPPT control algorithm,
MPPT efficiency ≥99.5%.
Input PV voltage:60-180VDC.
Output voltage range:280-360VDC.
Charge mode: three stages (fast charge,
constant charge, floating charge).lt
prolongs service life of the batteries.
Recommended battery types:
Flooded, Sealed lead acid, Gel battery.
Most information could be provide by
LCD;PV input voltage, battery type,
battery voltage, charging current,
charging power, working status and so on.

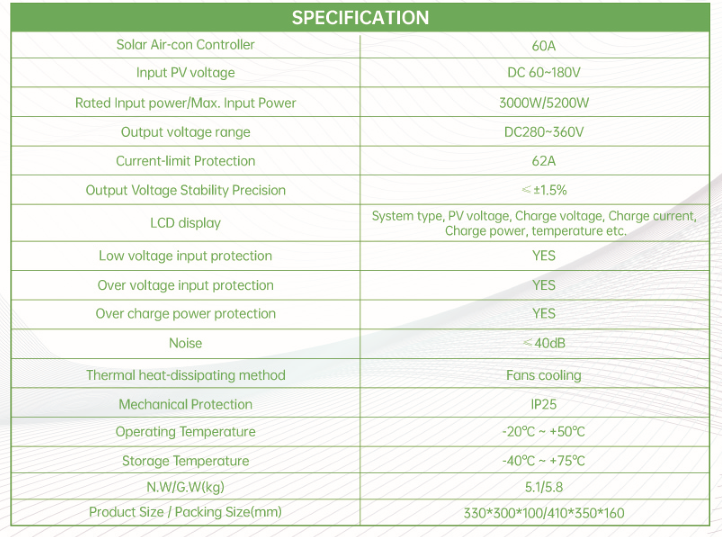

Technical Parameters
Note: 1. The above data is for reference only, please refer to the product nameplate;
2. The Company reserves the right to interpret the above data.
