Accessories

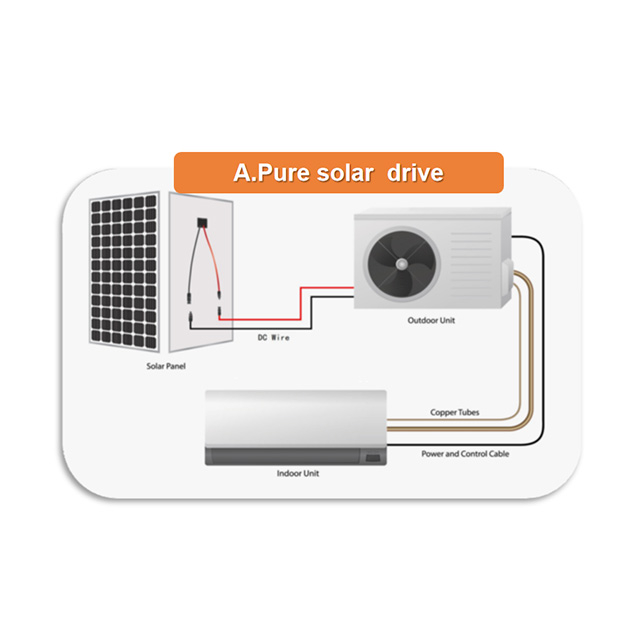

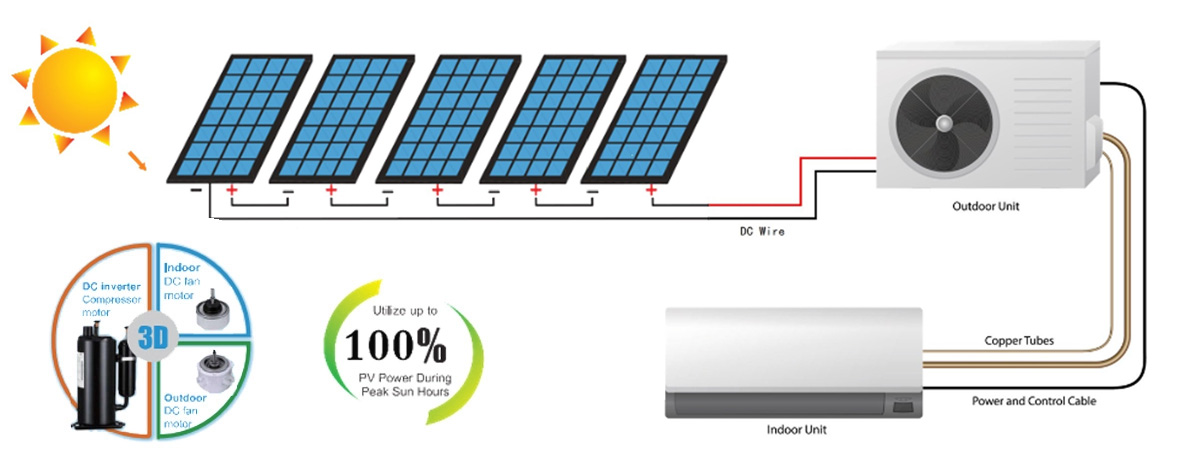

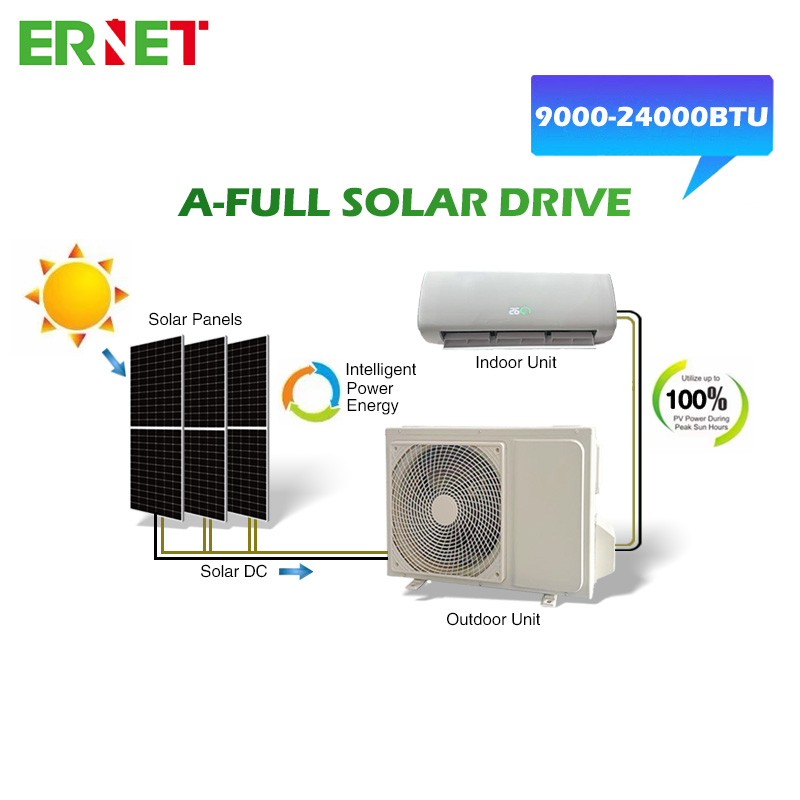

Working Principle
Features
100% solar-powered, the air conditioner provides cooling and heating without relying on AC power, ensuring maximum energy savings.
When photovoltaic power is insufficient to run the air conditioner at total capacity, the compressor frequency will be automatically adjusted to maintain cooling operation.
In off-grid mode, the solar air conditioner requires no electricity bill, making it an economical and energy-saving option.
The built-in MPPT optimizes and tracks the maximum photovoltaic power.

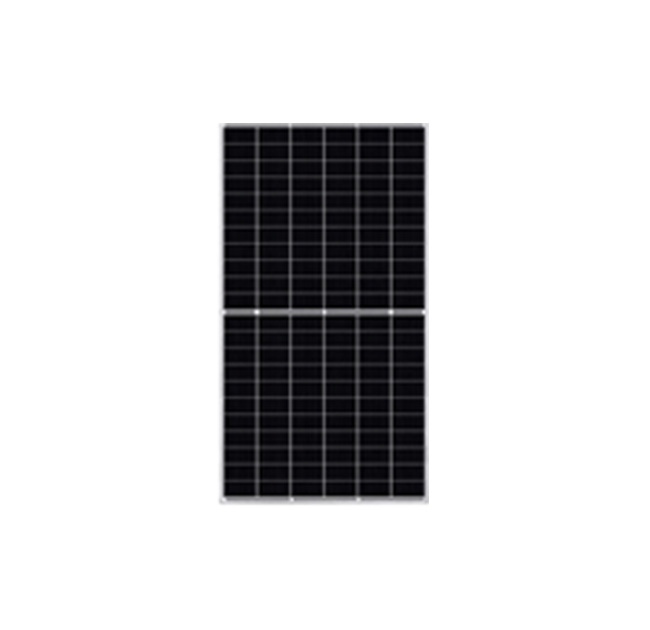

Configuration Table
MODEL | 9000BTU | 12000BTU | 18000BTU | 24000BTU | 30000BTU |
Solar Panel | 550W | 550W | 550W | 550W | 550W |
Quantity | 3(3-4pcs) | 4(3-5pcs) | 5(4-6pcs) | 7(6-8pcs) | 7(6-8pcs) |
Technical Parameters
| Model | Unit | KFR-26GW/PDCB3 | KFR-35GW/PDCB3 | KFR-50GW/PDCB3 | KFR-70GW/PDCB3 | |
| Climate Type | Tropical</= 56℃ | apply | apply | apply | apply | |
| Application area | m2 | 10-15 | 15-25 | 20-35 | 30-45 | |
| Power Supply | AC Power | Ph-V-Hz | ||||
| DC Power | V | 80-380V | 80-380V | 80-380V | 80-380V | |
| Solar Power Current | A | </=12 | </=12 | </=12 | </=12 | |
| Adviced Solar Panel | Pcs | (3-4)ˣ550w | (3-5)ˣ550w | (4-6)ˣ550w | (6-8)ˣ550w | |
| Rated Cooling | Capacity | W | 2640 | 3520 | 5050 | 7050 |
| BTU | 9000(2300～11200) | 12000(2300～13200) | 18000(6500~19200) | 24000(6500~25200) | ||
| Power input | W | 712(260～1000) | 1000(260～1550) | 1650(560~1900) | 1860(680～2600) | |
| Rated Heating | Capacity | W | 2650 | 3550 | 5120 | 7120 |
| BTU | 9000 | 12000 | 18000 | 24000 | ||
| Power input | W | 705(260～1200) | 960(260～1550) | 1350(400～1900) | 2050(680～2600) | |
| EER (W/W)/ (BTU/W) | / | 3.71/12.64 | 3.52/12.0 | 3.1/11.0 | 3.79/12.9 | |
| COP (W/W)/ (BTU/W) | / | 3.76/12.76 | 3.70/12.5 | 3.79/13.33 | 3.47/11.70 | |
| Dehumidification capacity | L/h | 1.0 | 1.3 | 1.9 | 2.3 | |
| Compressor | Model | / | KSK103D33UEZ3 | KSK103D33UEZ3 | KSN140D21UFZ | KTM240D43UMT |
| Type | / | Rotary | Rotary | Rotary | Rotary | |
| Brand | / | GMCC | GMCC | GMCC | GMCC | |
| Indoor fan motor | Model | ZKFP-13-8-115 | ZKFP-13-8-115 | ZKFP-30-8-125 | ZKFP-58-8-5 | |
| Speed (Hi/Mi/Lo) | r/min | 1130/1060/900 | 1130/1060/900 | 1200/1100/900 | 1350/1200/900 | |
| Indoor air flow (Hi/Mi/Lo) | m3/h | 650/595/536 | 650/595/536 | 1200/970/630 | 1300/1150/650 | |
| Indoor noise level | dB(A) | ≤41 | ≤43 | ≤49 | ≤50 | |
| Indoor unit | Dimension(W×H×D) | mm | 900ˣ290ˣ195 | 900ˣ290ˣ195 | 1080ˣ327ˣ227 | 1080ˣ327ˣ227 |
| Packing (W×H×D) | mm | 971ˣ364ˣ281 | 971ˣ364ˣ281 | 1150ˣ405ˣ310 | 1150ˣ405ˣ310 | |
| Net weight/Gross weight | Kg | 9.5/12.5 | 10/13 | 13/16 | 13/16 | |
| Outdoor fan motor | Model | / | ZKFP-20-10-7 | ZKFP-20-10-7 | ZKFN-56-8-1 | ZKFN-80-8-3 |
| Outdoor noise level | dB(A) | ≤50 | ≤50 | ≤57 | ≤59 | |
| Outdoor unit | Dimension(W×H×D) | mm | 780ˣ255ˣ540 | 780ˣ255ˣ540 | 820ˣ300ˣ600 | 900ˣ360ˣ640 |
| Packing (W×H×D) | mm | 885ˣ355ˣ615 | 885ˣ355ˣ615 | 925ˣ410ˣ650 | 1045ˣ455ˣ700 | |
| Net/Gross weight | Kg | 28.5/32 | 29/32.5 | 37/41 | 48/53 | |
| Refrigerant type | / | R32 | R32 | R32 | R32 | |
| Refrigerant Charged | g | 1100 | 1100 | 1250 | 1400 | |
| Max Design pressure | MPa | 4.30/1.15 | 4.30/1.15 | 4.30/1.15 | 4.30/1.15 | |
| Refrigerant copper pipe | Gas side/Liquid side | mm | 9.52 / 6.35 | 9.52 / 6.35 | 12.70 / 6.35 | 15.88 / 6.35 |
| Drain pipe size ( Ø ˣ Length ) | mm | 16.9ˣ2000 | 16.9ˣ2000 | 16.9ˣ2000 | 16.9ˣ2000 | |
| Refrigerant conenction copper pipe length | m | 3 | 3 | 3.5 | 4 | |
| Connection wire length | m | 4 | 4 | 4.5 | 5 | |
| Container Loading 20GP/40GP/40HQ | Sets | 104/228/261 | 104/228/261 | 81/166/193 | 60/132/155 | |
Note: 1. The above data is for reference only, please refer to the product nameplate;
2. The Company reserves the right to interpret the above data.
