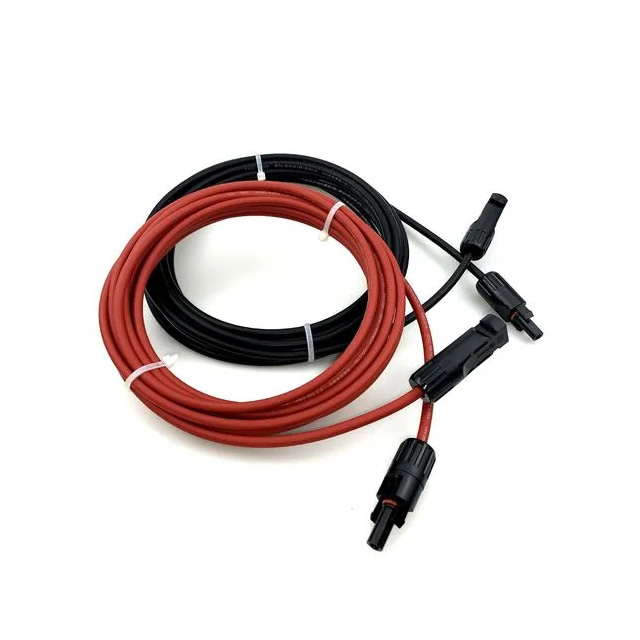

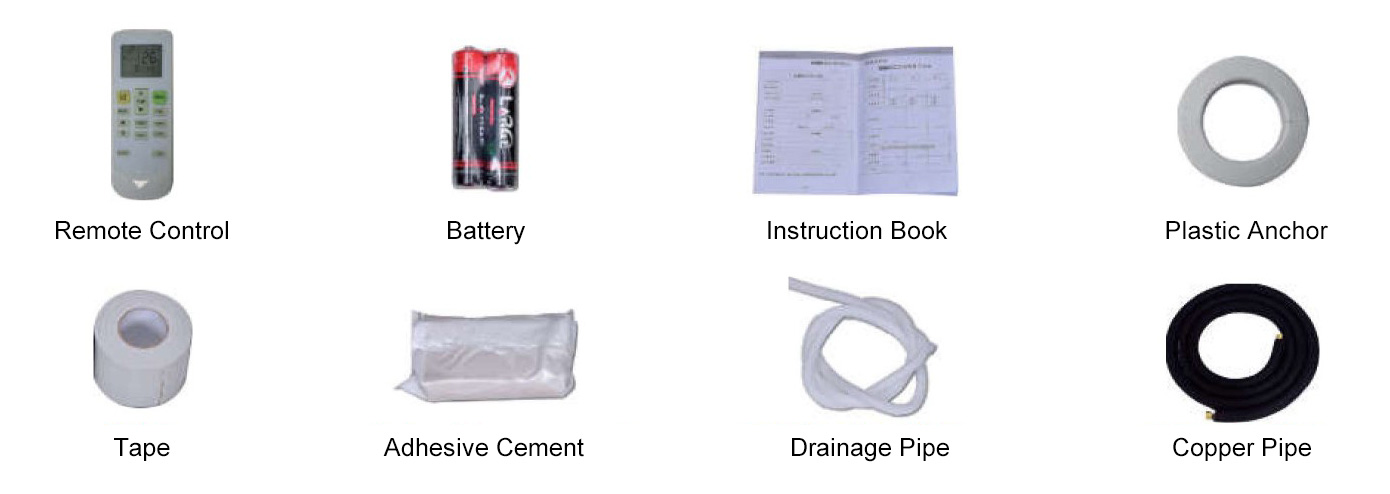

Accessories

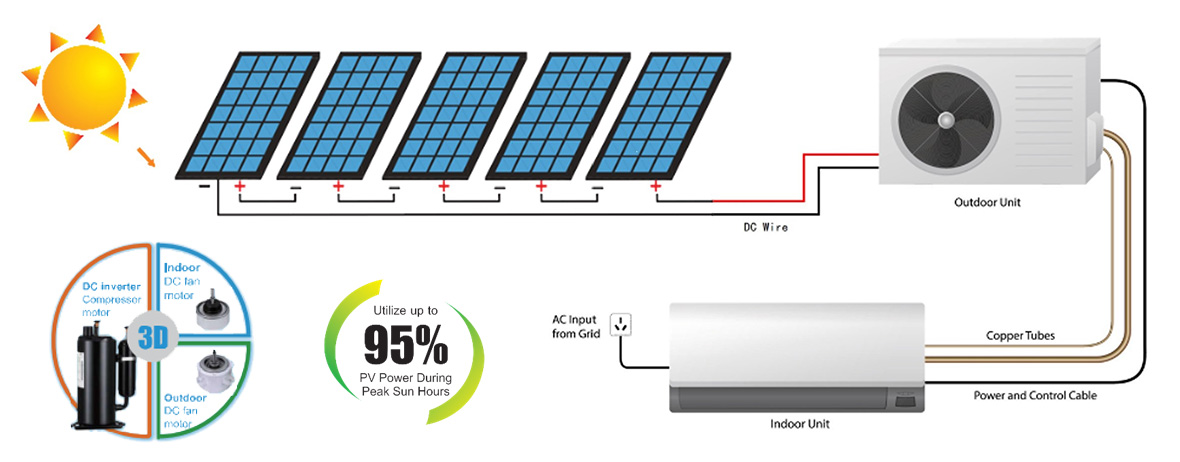

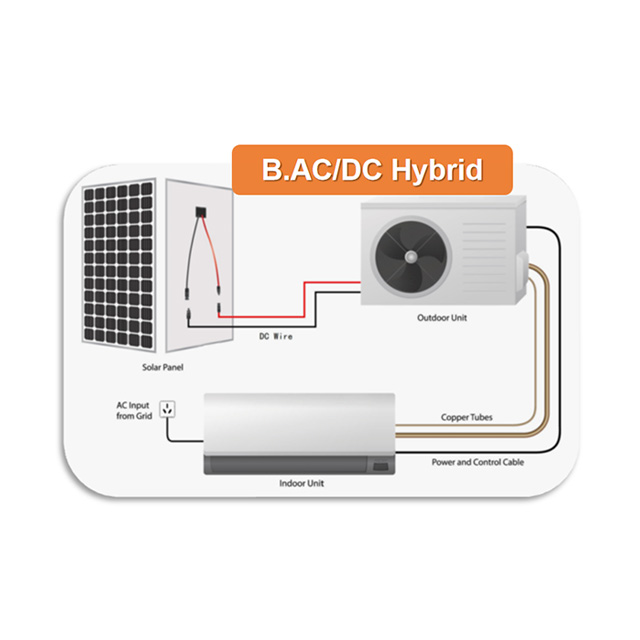

Working Principle
Features
ACDC Hybrid Solar Air Conditioner with AC/DC dual power supply.
The complete DC control system achieves a maximum energy efficiency of SEER36, compared to the SEER17 of typical variable frequency air conditioners.
The system uses an MPPT solar power selection control scheme, achieving energy-saving efficiency of 95% or more.
Solar energy and grid power work together, prioritizing solar energy and ensuring an uninterrupted power supply.
The wide voltage design allows for flexible combinations of solar panels, making it suitable for various site conditions.
They were designed to withstand various climatic conditions.
Configuration Table
MODEL | 9000BTU | 12000BTU | 18000BTU | 24000BTU | 36000BTU |

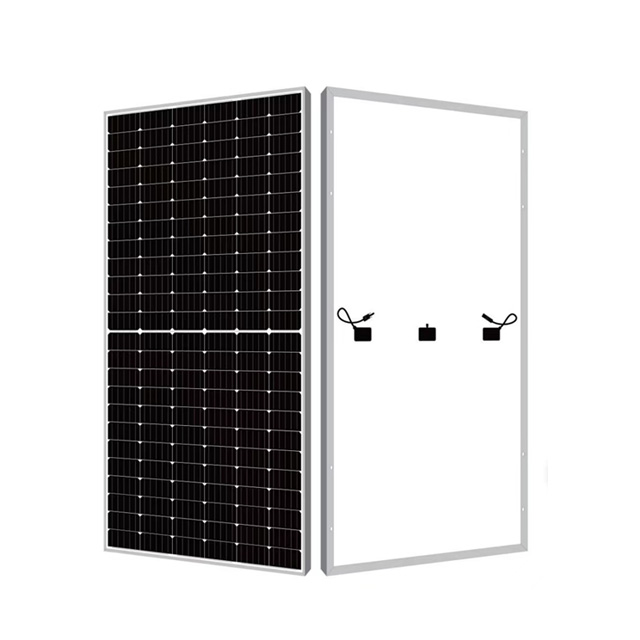

Solar panel | 550W | 550W | 550W | 550W | 550W |
Quantity | 2(2-3pcs) | 3(3-4pcs) | 4(4-5pcs ) | 6(5-7pcs ) | 7(6-8pcs ) |
Technical Parameters
| Model | Unit | KFR-26GW/ACDCB3 | KFR-35GW/ACDCB3 | KFR-50GW/ACDCB3 | KFR-70GW/ACDCB3 | |
| Climate Type | Tropical</= 56℃ | apply | apply | apply | apply | |
| Application area | m2 | 10-15 | 15-25 | 20-35 | 30-45 | |
| Power Supply | AC Power | Ph-V-Hz | ||||
| DC Power | V | 80-380V | 80-380V | 80-380V | 80-380V | |
| Solar Power Current | A | </=12 | </=12 | </=12 | </=12 | |
| Adviced Solar Panel | Pcs | (2-3)ˣ550w | (3-4)ˣ550w | (4-5)ˣ550w | (5-7)ˣ550w | |
| Rated Cooling | Capacity | W | 2640 | 3520 | 5050 | 7050 |
| BTU | 9000(2300～11200) | 12000(2300～13200) | 18000(6500~19200) | 24000(6500~25200) | ||
| Power input | W | 712(260～1000) | 1000(260～1550) | 1650(560~1900) | 1860(680～2600) | |
| Rated Heating | Capacity | W | 2650 | 3550 | 5120 | 7120 |
| BTU | 9000 | 12000 | 18000 | 24000 | ||
| Power input | W | 705(260～1200) | 960(260～1550) | 1350(400～1900) | 2050(680～2600) | |
| EER (W/W)/ (BTU/W) | / | 3.71/12.64 | 3.52/12.0 | 3.1/11.0 | 3.79/12.9 | |
| COP (W/W)/ (BTU/W) | / | 3.76/12.76 | 3.70/12.5 | 3.79/13.33 | 3.47/11.70 | |
| Dehumidification capacity | L/h | 1.0 | 1.3 | 1.9 | 2.3 | |
| Compressor | Model | / | KSK103D33UEZ3 | KSK103D33UEZ3 | KSN140D21UFZ | KTM240D43UMT |
| Type | / | Rotary | Rotary | Rotary | Rotary | |
| Brand | / | GMCC | GMCC | GMCC | GMCC | |
| Indoor fan motor | Model | ZKFP-13-8-115 | ZKFP-13-8-115 | ZKFP-30-8-125 | ZKFP-58-8-5 | |
| Speed (Hi/Mi/Lo) | r/min | 1130/1060/900 | 1130/1060/900 | 1200/1100/900 | 1350/1200/900 | |
| Indoor air flow (Hi/Mi/Lo) | m3/h | 650/595/536 | 650/595/536 | 1200/970/630 | 1300/1150/650 | |
| Indoor noise level | dB(A) | ≤41 | ≤43 | ≤49 | ≤50 | |

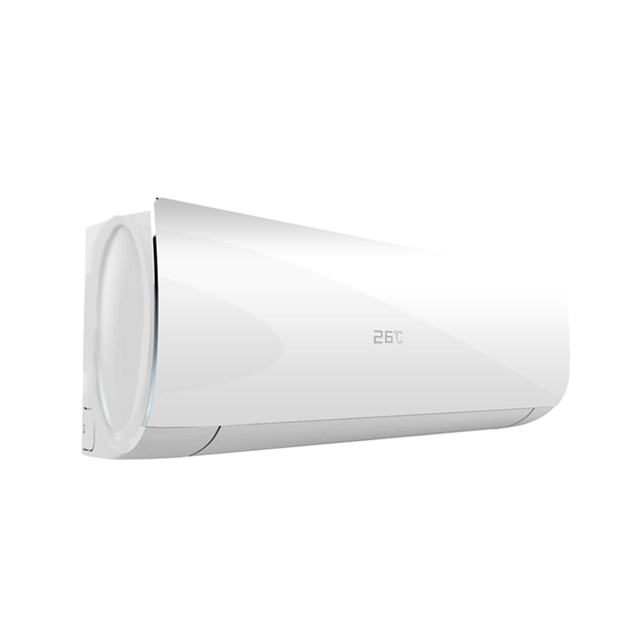

| Indoor unit | Dimension(W×H×D) | mm | 900ˣ290ˣ195 | 900ˣ290ˣ195 | 1080ˣ327ˣ227 | 1080ˣ327ˣ227 |
| Packing (W×H×D) | mm | 971ˣ364ˣ281 | 971ˣ364ˣ281 | 1150ˣ405ˣ310 | 1150ˣ405ˣ310 | |
| Net weight/Gross weight | Kg | 9.5/12.5 | 10/13 | 13/16 | 13/16 | |
| Outdoor fan motor | Model | / | ZKFP-20-10-7 | ZKFP-20-10-7 | ZKFN-56-8-1 | ZKFN-80-8-3 |
| Outdoor noise level | dB(A) | ≤50 | ≤50 | ≤57 | ≤59 | |

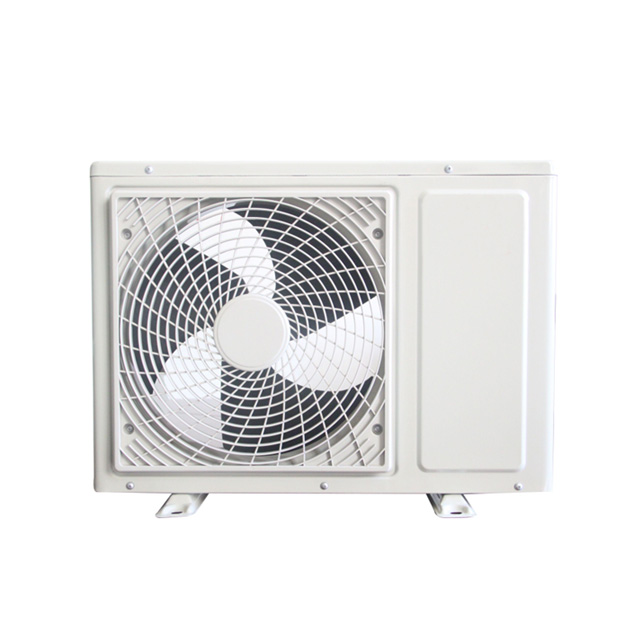

| Outdoor unit | Dimension(W×H×D) | mm | 780ˣ255ˣ540 | 780ˣ255ˣ540 | 820ˣ300ˣ600 | 900ˣ360ˣ640 |
| Packing (W×H×D) | mm | 885ˣ355ˣ615 | 885ˣ355ˣ615 | 925ˣ410ˣ650 | 1045ˣ455ˣ700 | |
| Net/Gross weight | Kg | 28.5/32 | 29/32.5 | 37/41 | 48/53 | |
| Refrigerant type | / | R32 | R32 | R32 | R32 | |
| Refrigerant Charged | g | 1100 | 1100 | 1250 | 1400 | |
| Max Design pressure | MPa | 4.30/1.15 | 4.30/1.15 | 4.30/1.15 | 4.30/1.15 | |
| Refrigerant copper pipe | Gas side/Liquid side | mm | 9.52 / 6.35 | 9.52 / 6.35 | 12.70 / 6.35 | 15.88 / 6.35 |
| Drain pipe size ( Ø ˣ Length ) | mm | 16.9ˣ2000 | 16.9ˣ2000 | 16.9ˣ2000 | 16.9ˣ2000 | |
| m | 3 | 3 | 3.5 | 4 | ||
| Connection wire length | m | 4 | 4 | 4.5 | 5 | |
| Container Loading 20GP/40GP/40HQ | Sets | 104/228/261 | 104/228/261 | 81/166/193 | 60/132/155 | |
Note: 1. The above data is for reference only, please refer to the product nameplate;
2. The Company reserves the right to interpret the above data.
